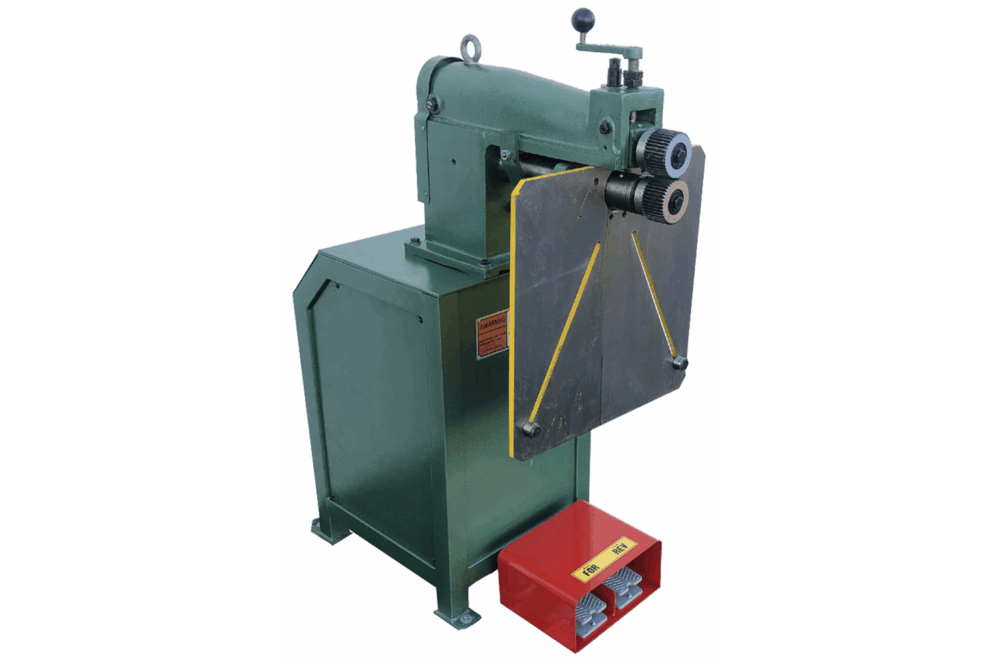

TK Power Crimper Beader
$5,250.00
The Tin Knocker Power Crimper Beader is a durable and versatile machine, capable of performing most beading and swaging functions with mild steel as thick as 18 gauge. The Power Crimper Beader has a deep, 13-inch throat, paired with a heavy-duty adjustable back gauge, to make handling material easy, regardless of size or depth.
The machine is built for durability, and is made of solid, machined cast iron, mounted on a sturdy sheet metal cabinet. A two-pedal foot switch allows the operator to have both hands free when feeding material or changing direction of the rolls.
Production Description
Specifications:
- Capacity: 18 gauge mild steel
- Motor: 1HP, 230V, 3-Phase
- Throat-to-frame depth: 13″
- Throat-to-backgauge depth: 12-1/4″
- Weight: 340 lbs
- Dimensions: 39″ x 14.5″ x 52″
- Included Tooling: 9 sets of rolls + spacers (see ‘More Information’ tab)

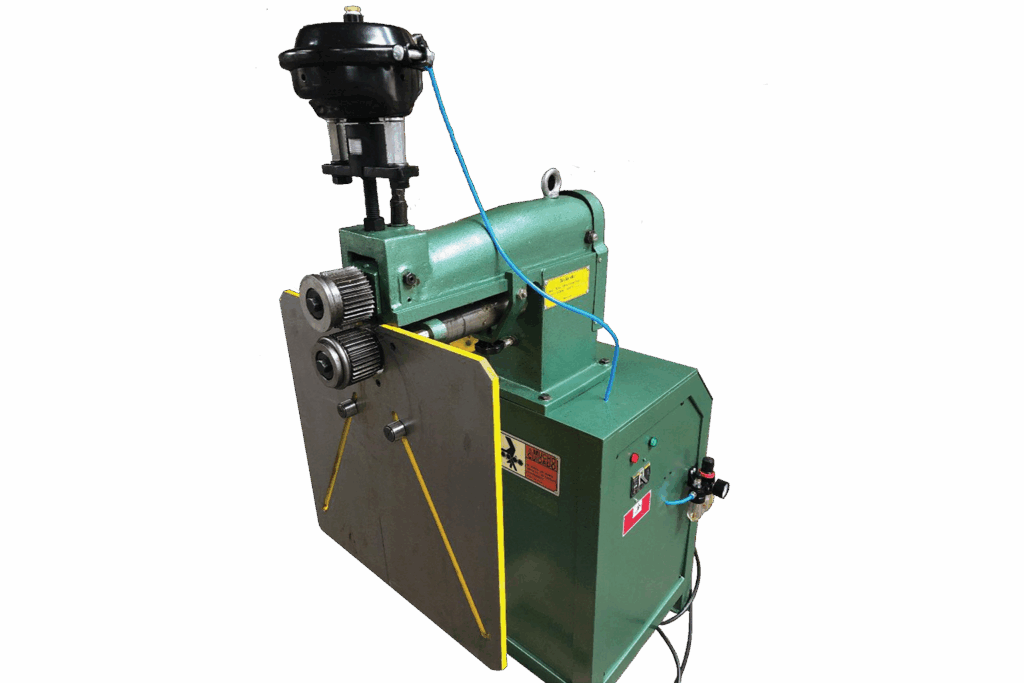

Optional air-over system:
