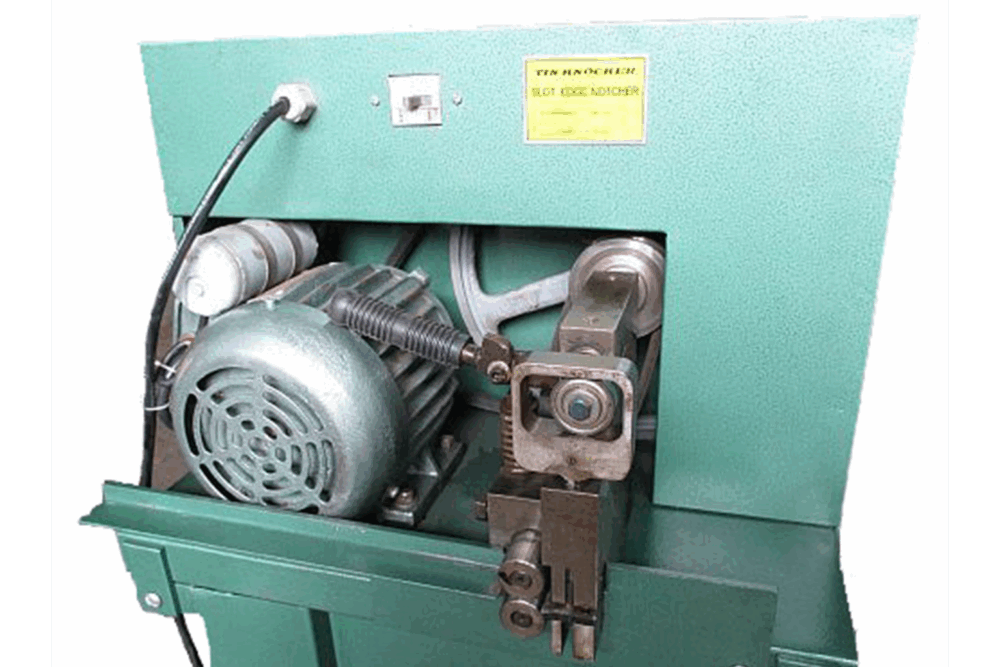

TK Edge Notcher
$2,550.00
The TK Edge Notcher can now be ordered with either: Slot Notch or “V” Notch! Includes both sets of tooling 1 machine to 2 notches.
Production Description
Machine Specifications:
- Motor – 1/3 HP, 110v, Single Phase, 60Hz AC
- Capacity – 20 Gauge Mild Steel
- Speed – Variable Minimum 18 FPM
- Overall Dimensions – 21″ Long, 16 1/2″ High, 13″ Deep
- Approx. Shipping Weight – 290 Lbs.
Specifications V Notch:
- Depth of notch range: 0 to 3/4″
- V is at 15 degrees
- Spacing – 3/4″ to 1 7/16″
Specifications Slot Notch:
- Depth of Notch – 0 to 3/4″
- Width of Notch – 3/16″
- Spacing – 3/4″ to 1 7/16″
