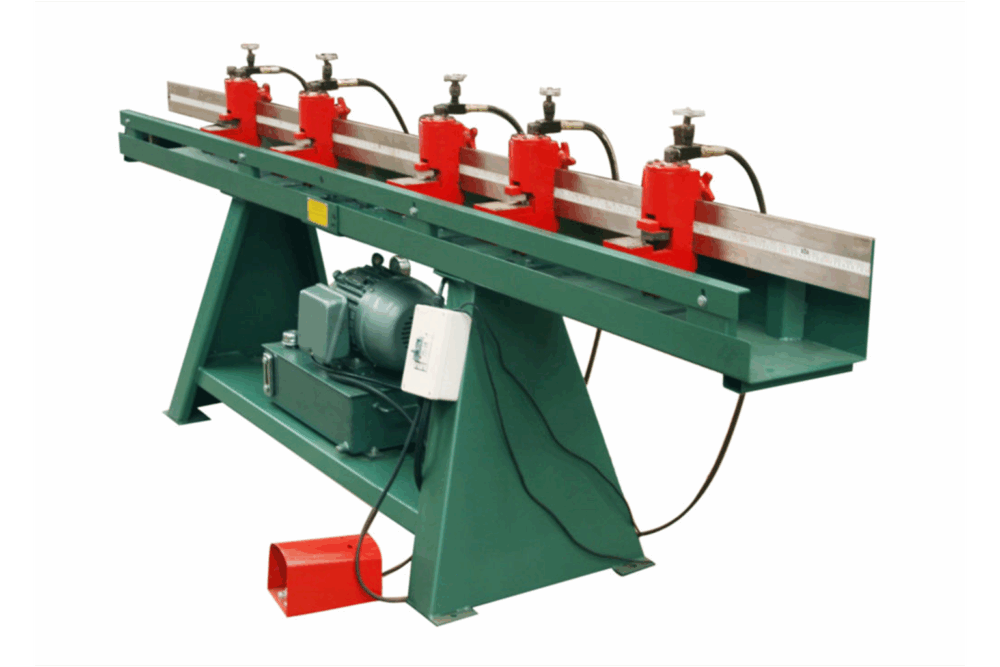

TK 1016 Duct Notcher (includes 5 Heads)
$7,250.00
Available in S&D Notch, TDC Notch or TDF Notch
QuickNotch, Hydraulic Duct Notcher.
Notches up to 6 times faster than hand notching. This 5 headed gang notcher is a fast and easy way to notch sheet metal ducting, in preparation to receive bar, S Cleats and Drive Cleats…or other drive connections. A real money maker in that it is fast, accurate and durable.
QuickNotch allows you to gang-notch sheet metal hydraulically up to 600% faster than by hand, without layout or scribing. It’s the perfect tool for preparing bar, slip or “s” and other drive connections.
Production Description
Specifications:
- Weight: 880 lbs
- Dimensions: 79 x 36 x 36 in
- Capacity: 16 – 28 gauge mild steel
- No. Notching Heads: 3 V and 2 corner, for 5 total. V Notch. 1 ½” max
- Motor & Electrics: 3 HP Dual Voltage,115- 230/1/60, 1800 RPM
