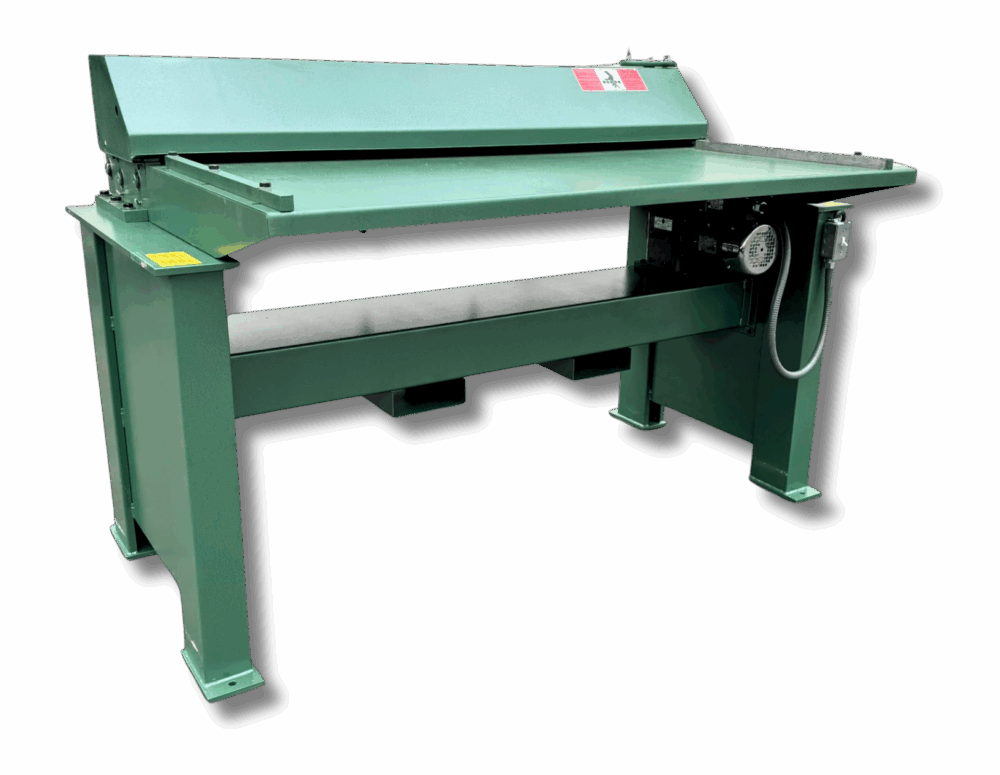

TK 1660 Duct Beader
$9,450.00
The Tin Knocker 1660 Duct Beader is a heavy-duty, adjustable beader designed to efficiently create SMACNA-approved beads, and eliminate the need to cross-break duct work.
Features of the 1660 Duct Beader include:
• 5 sets of bead tooling that can be positioned anywhere across the 60” working length of the machine for custom beading
• Tooling is held in place with set-screws, and can easily be swapped or replaced without replacing the cross-shaft
• Adjustable bead depth, up to 3/16” deep
• Powered exit support roll to eliminate material hang-up
• Large entrance table to support and orient the material entering the bead roll
Product Description
Specifications:
- Material Capacity: 16ga
- Maximum Material Width: 60″
- Maximum Bead Depth: 3/16″
- Tooling: 5 sets
- Motor: 1 HP, 115V, Single Phase, 60 Hz Standard (230/1/50 available)
- Dimensions: 80″L x 43″W x 34″H
- Weight: 1750 lbs
